Daim Ntawv Kas Fes Khob Ua Tshuab
Pkabpiav qhia:

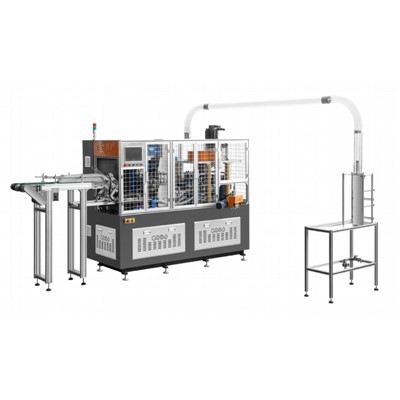

PAPER COFFEE CUP UA HAUJ LWM
Technical Specification:
|
Qauv |
GD-280 |
|
khob loj |
2 5-16oz |
|
Khob saum txoj kab uas hla |
50 ~ 100 hli |
|
khob qhov siab |
mus txog 135 mm |
|
Khoom siv |
170-350gsm ib leeg thiab ob lub pe coated ntawv lossis PLA ntawv |
|
Ceev |
150-200pcs/min |
|
Hwj chim |
380v / 220v 3 theem 24kw |
|
Cua qhov chaw |
1cbm/min 0.8mpa |
|
Tshuab Loj |
3300 * 1500 * 2100 hli |
|
hnyav |
3000 kgs |
|
HS CODE |
84413090, 84414000 |
|
Lub Sijhawm Lead |
45 Hnub |
|
Chaw thau khoom chaw nres nkoj |
Ningbo Chaw nres nkoj Tuam Tshoj |
PRODUCTS FEATURE:
GD-280 tag nrho servo tsav ntse ntse siab ceev pov tseg daim ntawv kas fes khob ua tshuab txais cov cuab yeej tshiab los ua kom nws lub zog txuag, txuag thiab ruaj khov. Cov duab zoo heev thiab cov pwm tuaj yeem hloov pauv. Zoo Machinery yuav siv zog tsis tu ncua mus nrhiav qhov zoo tshaj plaws hauv science thiab technology innovation. Daim ntawv khob lub tshuab no txais cov thev naus laus zis tshiab ntawm kev tsim servo tag nrho, hloov pauv tag nrho cov tshuab tsim ua ntej, tsis siv neeg cov roj lubrication system thiab PLC tswj qhov system thiab rov ua dua silicon roj system los txhim kho lub tshuab ruaj khov thiab kev ua haujlwm hauv kev kub ceev khiav.
GD-280 tag nrho servo tsav ntse ntse kev kub ceev pov tseg daim ntawv kas fes khob ua tshuab tuaj yeem txuas nrog lub siab ceev ob chav phab ntsa ntawv khob tshuab GD-280T thiab nws pib ntim tshuab los sau cov kab tiav rau kev ua cov hollow ob phab ntsa ntawv khob hauv kev ua haujlwm siab txog li 160-180 pcs/min.
Nrog kev ruaj ntseg tawb tiv thaiv, kev ua haujlwm nyab xeeb
01
Tsis siv neeg khob kiv cua feeder txuag nqi zog.
02
Tshuab nrog PLC tswj thiab kov npo ua haujlwm nrog WIFI kev pabcuam muaj.
03
Cua kub preheating rau daim ntawv ntxuam ntug kom lub sealing zoo nyob rau hauv kev kub ceev
04
Nrog Aluminium pwm ntsia kom paub meej tias lub tshuab tuaj yeem khiav hauv kev kub ceev nrog tsawg qhov hnyav loaded
05
Tshuab nrog tag nrho servo tsav system, muaj tseeb dua thiab ntse los tswj
06
Sab sealing los ntawm cua kub preheating thiab Ultrasonic sealing
07
Tsis siv neeg khib nyiab hauv qab ntawv txiav tawm
08
2 Kauj Ruam Sab saum toj Curling system ua rau sab saum toj curling zoo meej puag ncig nrog tshaj 400 degree curling
09
Hauv qab daim ntawv pub mis nrog servo tswj, tsis muaj lub khob lub cev thiab tsis pub hauv qab, tsis muaj
10
Nruab nrog thoob ntiaj teb hom hluav taws xob configuration, ntau ruaj thiab ntseeg tsim nyog
11
10 servo motors los ntawm Innovance, Tuam Tshoj Sab saum toj ib nrog zoo tom qab muag kev pab.
12
Peb qhov kev pabcuam:
Peb muaj pab neeg ua haujlwm QC los xyuas kom meej tshuab zoo.
Daim ntawv qhia online rau kev teeb tsa.
24 * 7 kev pabcuam online
Yuav xa engineer rau koj lub Hoobkas los txhawb nrog kev teeb tsa thiab kev cob qhia
Ua 100% kev soj ntsuam ua ntej cov khoom xa tuaj.
Muab ib xyoos lav rau tshuab zoo
Cov chaw ua haujlwm txawv teb chaws hauv qee lub tebchaws muaj
Muaj zog Technical Force hauv R & D thiab muaj peev xwm kho tau zoo
Vim li cas ho xaiv peb?
Peb muab cov tswv yim thiab kev sab laj kev lag luam
Peb muab Hoobkas pem teb txoj kev npaj thiab layout
Peb muab kev pab cuam export thiab ntshuam
Peb muab kev pabcuam localization
Peb muab engineer qhov rooj rau qhov rooj installation thiab kev cob qhia
PAPER CUP UA HAUJ LWMNtim:
Nyob rau hauv rooj plaub ntoo los yog ntoo pallets raws li
FAQ:
Q: Kev Lag Luam Pain Points:
-Cov khoom siv raw thiab cov khoom siv tsis sib xws los tsim cov khoom xav tau.
-Tsis paub yuav ua li cas tswj cov cuab yeej.
Cia peb txhawb koj, peb muaj 15 xyoo kev paub hauv kev lag luam no.
Cim npe nrov: paper kas fes khob ua tshuab, Tuam Tshoj ntawv kas fes khob ua tshuab manufacturers, lwm tus neeg, Hoobkas
